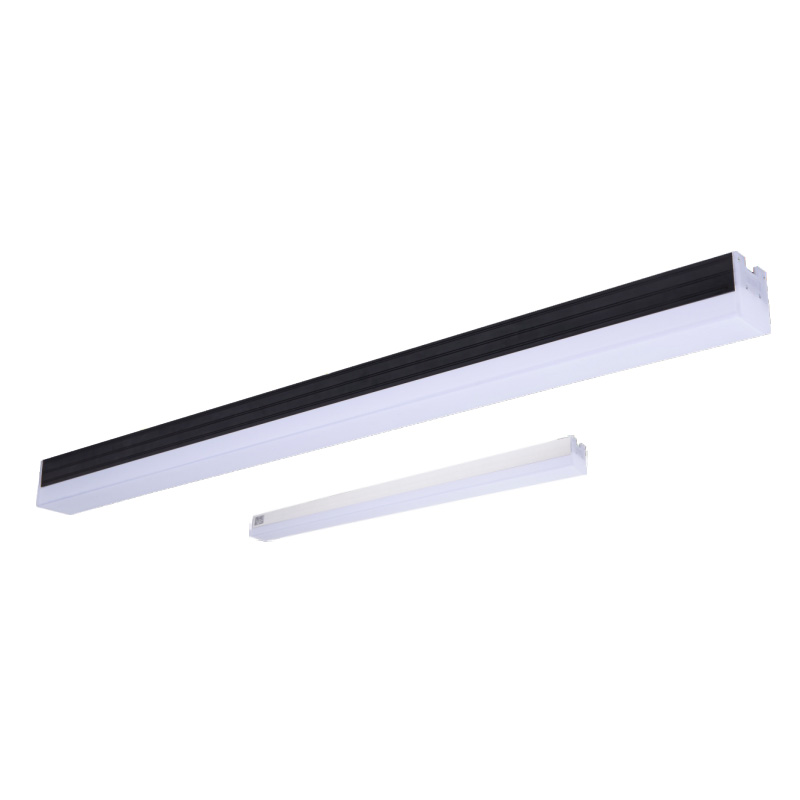

4-speed Dimming Supermarket Led Linear Light

Zhenmingshi is a reliable factory supplier, 4-speed dimming supermarket LED linear light has wholesale advantages, and also has high durability and excellent dimming function. Zhenmingshi 4-speed dimming supermarket LED linear light can meet the different lighting needs of supermarkets, reduce operating costs, and improve the lighting environment and shopping experience of supermarkets.

Send Inquiry

Product Description

Zhenmingshi 4-speed dimming supermarket LED linear light has 4-speed high-quality dimming functions and can be customized. It can be flexibly adjusted according to the lighting needs of different time periods and different areas of the supermarket. The surface of the Zhenmingshi 4-speed dimming supermarket LED linear light has been processed with the latest technology, with good dust and moisture resistance, reducing the impact of dust and water vapor on the lamps, keeping the lamps clean and bright, and reducing the frequency of maintenance.

Product features:

High efficiency and energy saving: using advanced LED light source technology, compared with traditional lighting products, the power consumption is greatly reduced, and long-term use can significantly reduce the operating costs of supermarkets.

Long life: The life of LED light source is up to tens of thousands of hours, which reduces the frequency and maintenance cost of lamp replacement and improves the operating efficiency of supermarkets.

The latest dimming technology: 4-speed Dimming Supermarket Led Linear Light using advanced dimming control system, the dimming process is smooth and flicker-free, which will not cause discomfort to customers' vision and create a comfortable shopping environment for supermarkets.

High brightness: The light is uniform and soft, with sufficient illumination, which can clearly display the goods and enhance the shopping experience of customers.

Wide applicability: 4-speed Dimming Supermarket Led Linear Light are suitable for various areas of supermarkets, the linear design can be better integrated with the decoration style and space layout of the supermarket. You can also choose the appropriate length and number of LED linear lights according to actual needs to meet the lighting needs of supermarkets of different sizes.

Technical Parameters

Item No.	ZMS-WMFG-120
Power	36W/44W
Flux	120-130Lm/W
PF	≥0.95
InputVoltage	220V~265V 50-60Hz
Facade color	White/Black
Material	Aluminum Profile
LED light	American Purui
Driver	Igor Power
Color	Fresh color/intelligent dimming and color adjustment/3000K/4000K/5000K
CRI	90
Quality	5 years
Cert.of Driven	CCC CE CB ROHS SAA TUV
Light Angle	90°

Core Configuration

Igor Power

Intelligent energy saving 40% supermarket lighting system

Dimensions

IES measured indoor lighting photometric data

Voltage (V): 219.50 V	Maximum light intensity: 1245.01 cd
Current (A): 0.1720 A	Maximum light intensity angle: C=0 Gamma=6
Power (W): 36.97 W	Upward luminous flux ratio: 0.00%
Power factor: 0.9760	Lamp efficiency: 100.00%
Light source luminous flux: 4337.27	Central light intensity: 1241.52 cd
Effective luminous flux: 4331.15 lm	Luminous flux ERP (φuse) 120 degrees: 3007.40 lm
