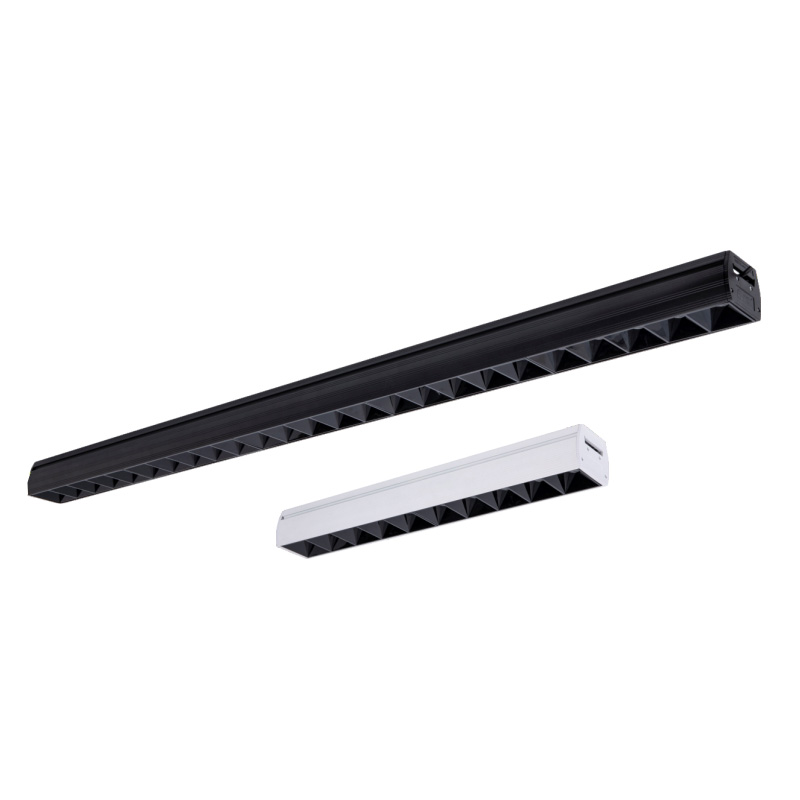

1-10V Dimmable LED Linear Light

The Zhenmingshi 1-10V Dimmable LED Linear Light adopts advanced dimming technology, which can achieve precise dimming of 1 - 10V, with excellent quality and convenient maintenance. The Zhenmingshi 1-10V dimming LED linear light not only has the latest lighting effects and energy-saving characteristics, but also has a wide dimming range and flexible application scenarios.

Send Inquiry

Product Description

The Zhenmingshi 1-10V Dimmable LED Linear Light adopts advanced dimming circuit design to ensure a smooth and flicker-free dimming process, effectively protecting the user's eyes, while also improving the stability and reliability of the light. The 1-10V dimming LED linear lamp under the Zhenmingshi brand has an elegant design and smooth lines. It can match various interior decoration styles and add a sense of fashion to the space.

Product features:

High-quality materials and manufacturing process: The 1-10V Dimmable LED Linear Light lamp body is made of high-quality aluminum alloy material with good heat dissipation performance. It can quickly dissipate the heat generated by the lamp when it is working and extend the service life of the lamp.

Voltage: It varies according to the specific model and regional standards, but generally supports wide voltage input

Advanced dimming technology: The 1-10V Dimmable LED Linear Light lamp supports a dimming range of 1 - 10V, which can accurately adjust the brightness of the light. Whether it requires a bright working environment or soft atmosphere lighting, it can be easily achieved.

Advantages of the latest best-selling product: With its advanced technology, high-quality materials and easy maintenance, this 1 - 10V dimmable LED linear light is highly favored in the market and has become one of the best-selling products of Zhenmingshi Factory.

Color temperature: Different color temperature options can be provided according to customer needs, such as warm white, neutral white, cool white, etc.

Technical Parameters

Item No.	ZMS-HXSFX8879/100D
Power	36W/42W/72W
Flux	120-130Lm/W
PF	≥0.95
InputVoltage	220V~265V 50-60Hz
Facade color	White/Black
Material	Aluminum Profile
LED light	American Purui
Driver	Igor Power
Color	Fresh color/intelligent dimming and color adjustment/3000K/4000K/5000K
CRI	80, 98 (full spectrum)
Quality	5 years
Cert.of Driven	CCC CE CB ROHS SAA TUV
Light Angle	90°

Core Configuration

Igor Power

Intelligent energy saving 40% supermarket lighting system

Dimensions

IES measured indoor lighting photometric data

Light source data		Luminous intensity data Light efficiency: 59.20 lm/W
Model		Peak light intensity (cd)	1466	S/MH(C0/180)	1.25
Nominal power (W)	37.04W	Lamp efficiency (%)	100.0	S/MH (C90/270)	1.23
Rated power supply voltage (V)	220	Total luminous flux (lm)	2192.9	η UP,DN(C0-180)	0.5,47.4
Rated luminous flux(lm)	2195.91	CIE classification	Direct	η UP,DN(C180-360)	0.5,51.6
Number of light sources in the lamp (pcs)	1	Upward luminous flux ratio (8)	1.0	CIBSE SHR NOM	0.75
Measured power supply voltage (V)	220	Downward luminous flux ratio (8)	99.0	CIBSE SHR MAX	0.95
