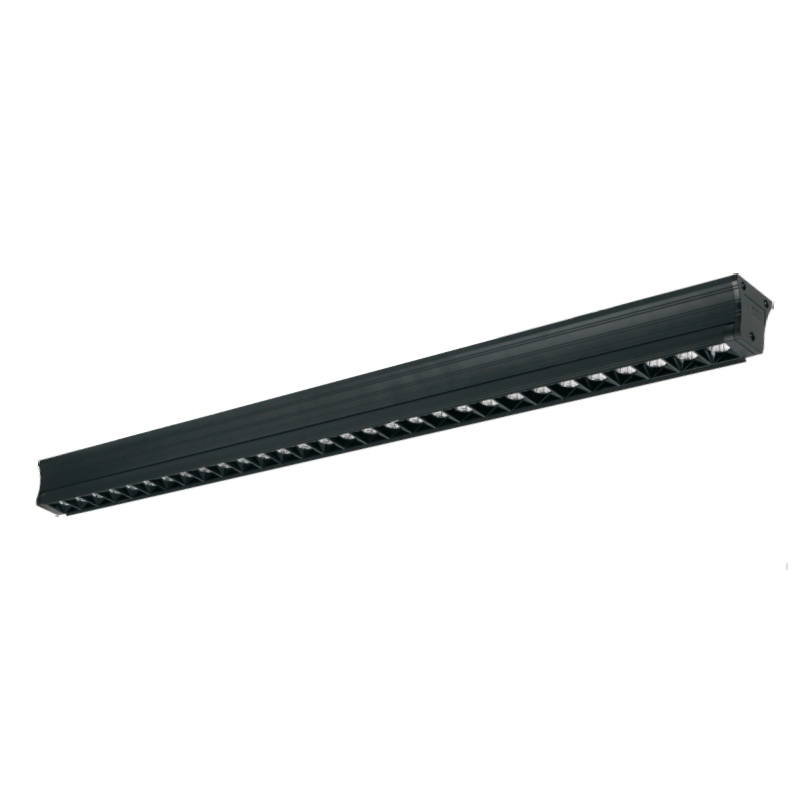

DALI Dimmable LED Linear Light

As a professional manufacturer in the lighting field, the DALI Dimmable LED Linear Light launched by Zhenmingshi Factory is an advanced lighting product that integrates high efficiency, intelligence and high durability. Zhenmingshi DALI dimming LED linear light has advanced dimming performance, flexible control system and a wide range of application scenarios.

Send Inquiry

Product Description

Zhenmingshi DALI Dimmable LED Linear Light adopt advanced DALI digital dimming technology. Each lamp has an independent address, and each lamp can be precisely controlled through the DALI system software. Zhenmingshi DALI DALI Dimmable LED Linear Light use high-quality LED chips, driver power supplies and the latest optical materials to ensure the brightness, color reproduction and stability of the light.

Product features:

Wide dimming range: DALI Dimmable LED Linear Light supports brightness adjustment from 0% to 100%, and the dimming process is smooth and flicker-free, ensuring the stability and comfort of the lighting effect.

High efficiency and energy saving: Through precise dimming control, the brightness of the lamp can be adjusted according to actual use needs, effectively saving energy and reducing operating costs

Easy to install and maintain: DALI system wiring is simple and flexible, the strong and weak current circuits are independent of each other, and the control signal line length can reach 300 meters, which is easy to install and debug.

DALI intelligent dimming: Using the DALI protocol, communicate with the DALI controller or DALI host through digital signals to achieve precise dimming of lamps.

Technical Parameters

Item No.	ZMS-DP88176
Power	25W/30W/36W
Flux	120-130Lm/W
PF	≥0.95
InputVoltage	220V~265V 50-60Hz
Facade color	White/Black
Material	Aluminum Profile
LED light	American Purui
Driver	Igor Power
Color	Fresh color/intelligent dimming and color adjustment/3000K/4000K/5000K
CRI	90
Quality	3 years
Cert.of Driven	CCC CE CB ROHS SAA TUV
Light Angle	24°

Core Configuration

Igor Power

Intelligent energy saving 40% supermarket lighting system

Dimensions

IES measured indoor lighting photometric data

Light source data		Luminous intensity data Light efficiency: 87.36 lm/W
Model		Peak light intensity (cd)	12212	S/MH(C0/180)	0.42
Nominal power (W)	30.52W	Lamp efficiency (%)	100.0	S/MH (C90/270)	0.37
Rated power supply voltage (V)	220	Total luminous flux (lm)	2665.9	η UP,DN(C0-180)	0.5,52.2
Rated luminous flux(lm)	2665.94	CIE classification	Direct	η UP,DN(C180-360)	0.5,46.8
Number of light sources in the lamp (pcs)	1	Upward luminous flux ratio (8)	1.0	CIBSE SHR NOM	0.00
Measured power supply voltage (V)	220	Downward luminous flux ratio (8)	99.0	CIBSE SHR MAX	1.00
