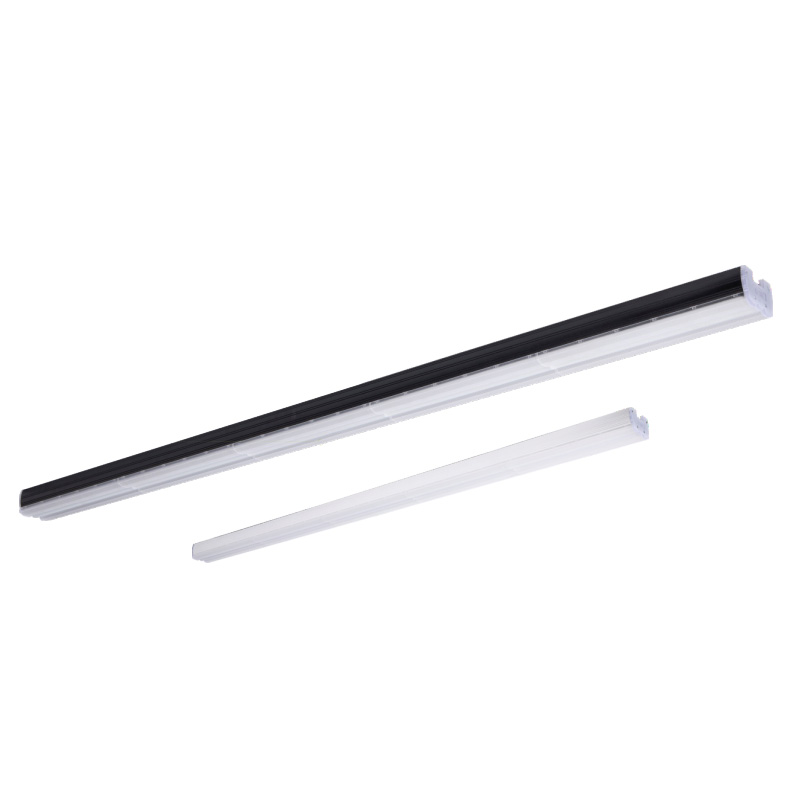

Energy-efficient Led Lighting for Supermarkets

Zhenmingshi Energy-efficient Led Lighting for Supermarkets has advanced production capacity and a complete supply chain system, which can ensure timely and stable supply of large quantities of high-quality LED linear lights to supermarkets to meet the needs of large-scale lighting renovation or new construction in supermarkets. Zhenmingshi Supermarket Energy-saving System LED Linear Light has certain advantages in wholesale sales, which can help supermarkets reduce the procurement cost of lighting systems.

Send Inquiry

Product Description

The Energy-efficient Led Lighting for Supermarkets of Zhenmingshi manufacturers not only have excellent lighting effects, but also save a lot of energy for supermarkets and are very durable. Zhenmingshi supermarket energy-saving system LED linear lights are LED linear light systems that meet the energy-saving needs of supermarkets. They integrate intelligent energy-saving technology and ultra-low temperature lighting design to achieve high-quality light energy conversion and intelligent regulation.

Product features:

High-quality optical design: The carefully designed optical lens or reflector can evenly distribute the light, avoid glare and shadows, and provide a comfortable and bright lighting environment for the supermarket

Excellent material selection: Select high-quality aluminum, PC materials, electronic components and other raw materials to ensure that the Energy-efficient Led Lighting for Supermarkets has a solid structure, good heat dissipation and long service life

Customized service: According to the special needs of the supermarket, such as different lighting layouts, installation methods, etc., customized solutions can be provided to make the LED linear light better adapt to the actual situation of the supermarket

Intelligent control: Some models of LED Linear lights support intelligent control functions and can be integrated with the supermarket's lighting control system to achieve automatic adjustment and remote control of lights

Design features:

High light efficiency:Energy-efficient Led Lighting for Supermarkets have high light efficiency characteristics. One light can fully illuminate two 1.2-meter shelves. The total power is only 42 watts, and the power consumption of a single shelf is only 21 watts, which effectively reduces energy consumption.

Intelligent energy saving: The system can automatically adjust the brightness according to the flow of people in the supermarket, achieving energy saving effects of up to 40%

Extremely long life: High-quality LED light sources and drive electrical appliances are used to delay light decay and extend service life.

Technical Parameters

Item No.	ZMS-HX881428-1430
Power	36W/44W/72W
Flux	120-130Lm/W
PF	≥0.95
InputVoltage	220V~265V 50-60Hz
Facade color	White/Black
Material	Aluminum Profile
LED light	American Purui
Driver	Igor Power
Color	Fresh color/intelligent dimming and color adjustment/3000K/4000K/5000K
CRI	80
Quality	5 years
Cert.of Driven	CCC CE CB ROHS SAA TUV
Light Angle	90°

Core Configuration

Igor Power

Intelligent energy saving 40% supermarket lighting system

Dimensions

IES measured indoor lighting photometric data

Voltage (V): 219.70 V	Maximum light intensity: 2238.26 cd
Current (A): 0.2050 A	Maximum light intensity angle: C=0 Gamma=4
Power (W): 44.36 W	Upward luminous flux ratio: 0.00%
Power factor: 0.9800	Lamp efficiency: 100.00%
Light source luminous flux: 6219.51	Central light intensity: 2231.98 cd
Effective luminous flux: 6102.93 lm	Luminous flux ERP (φuse) 120 degrees: 4910.73 lm
