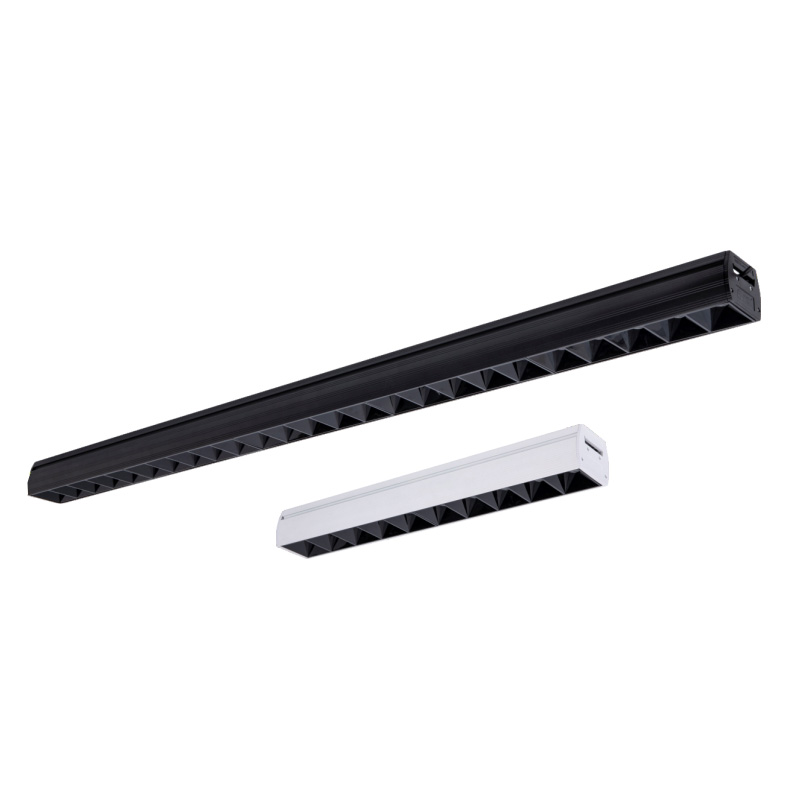

Intelligent Dimming Seamlessly Connected Led Linear Lights

Zhenmingshi is committed to the research and development and production of high-quality LED lighting products. The Intelligent Dimming Seamlessly Connected Led Linear Lights has advanced dimming technology, which can realize flexible adjustment of light brightness, color temperature, etc. The intelligent dimming seamless connection LED linear light of Zhenmingshi factory combines intelligent dimming technology with seamless connection design to provide better lighting effects for indoor and outdoor lighting.

Send Inquiry

Product Description

Zhenmingshi Intelligent Dimming Seamlessly Connected Led Linear Lights is a lighting product that integrates high technology and beautiful design. It adopts advanced LED technology and has intelligent dimming function. The intelligent dimming seamless connection LED linear light of Zhenmingshi manufacturer can automatically adjust the brightness according to the ambient light, and realize seamless connection at the same time, bringing high-quality and comfortable lighting effects to indoor and outdoor spaces.

Product features:

Intelligent dimming: Built-in intelligent dimming system, which can automatically adjust the brightness according to the changes in ambient light, achieving the dual effects of energy saving and comfort.

Seamless connection: The connection between the lamp bodies is tight and seamless. After installation, it can form a continuous light without breakpoints or gaps, making the lighting effect more uniform and beautiful

High brightness: The Intelligent Dimming Seamlessly Connected Led Linear Lights source has high brightness and pure color, providing sufficient and uniform light for the space.

Technical parameters:

Irradiation distance: up to 20 meters

Waterproof level: IP65, ensuring stable operation in a variety of environments

Beam angle: 15°-60°, customizable according to needs

Control method: Intelligent Dimming Seamlessly Connected Led Linear Lights support DMX512 controller or simple controller for intelligent control

Technical Parameters

Item No.	ZMS-HXSFX8879/100D
Power	36W/42W/72W
Flux	120-130Lm/W
PF	≥0.95
InputVoltage	220V~265V 50-60Hz
Facade color	White/Black
Material	Aluminum Profile
LED light	American Purui
Driver	Igor Power
Color	Fresh color/intelligent dimming and color adjustment/3000K/4000K/5000K
CRI	80, 98 (full spectrum)
Quality	5 years
Cert.of Driven	CCC CE CB ROHS SAA TUV
Light Angle	90°

Core Configuration

Igor Power

Intelligent energy saving 40% supermarket lighting system

Dimensions

IES measured indoor lighting photometric data

Light source data		Luminous intensity data Light efficiency: 59.20 lm/W
Model		Peak light intensity (cd)	1466	S/MH(C0/180)	1.25
Nominal power (W)	37.04W	Lamp efficiency (%)	100.0	S/MH (C90/270)	1.23
Rated power supply voltage (V)	220	Total luminous flux (lm)	2192.9	η UP,DN(C0-180)	0.5,47.4
Rated luminous flux(lm)	2195.91	CIE classification	Direct	η UP,DN(C180-360)	0.5,51.6
Number of light sources in the lamp (pcs)	1	Upward luminous flux ratio (8)	1.0	CIBSE SHR NOM	0.75
Measured power supply voltage (V)	220	Downward luminous flux ratio (8)	99.0	CIBSE SHR MAX	0.95
