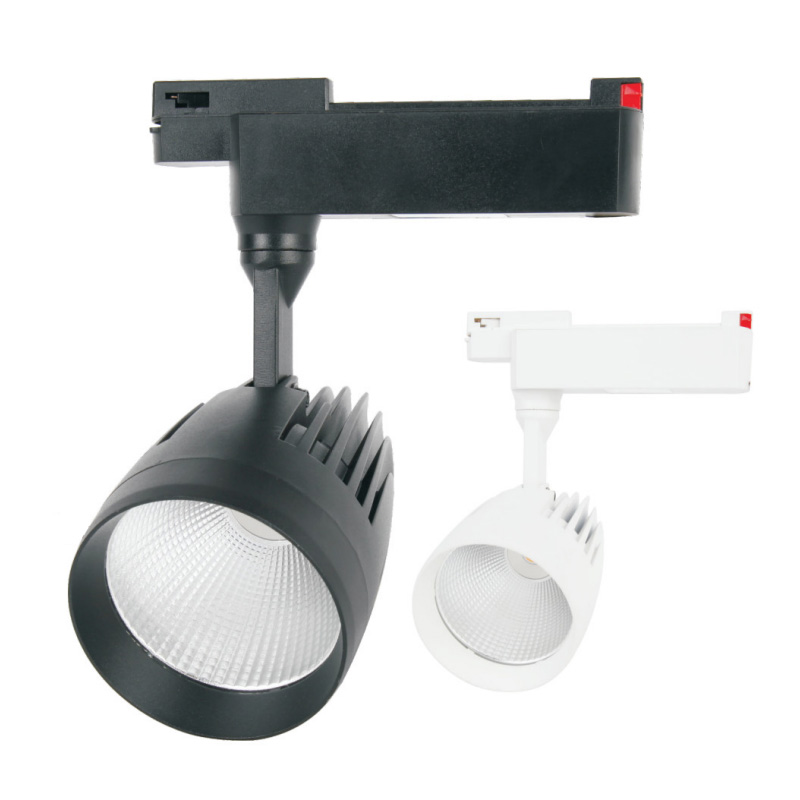

90 COB LED Track Light

The 90 COB LED Track Light from Zhenmingshi manufacturer is a lighting product that integrates the latest technology and advanced design. The color rendering index of Zhenmingshi 90 CRI COB track light is as high as 90, which can highly restore the true color of objects, making the colors of objects more vivid and realistic. It is one of the latest best-selling products.

Send Inquiry

Product Description

Zhenmingshi 90 COB LED Track Light chip has high integration, high luminous efficiency, uniform and soft light, reduces glare and ghosting, and makes the lighting effect more comfortable and elegant. Compared with traditional LED lamp beads, the COB chip of Zhenmingshi factory 90 CRI COB track light has better heat dissipation performance, which effectively extends the service life of the lamp.

Product features:

High-quality driving power supply: Select high-quality driving power supply with stable current output and good electromagnetic compatibility, which can effectively avoid damage to the lamp caused by voltage fluctuations and electromagnetic interference, and ensure the normal operation of the lamp.

Brand LED cold light source: no radiation, no heavy metal pollution, pure and rich colors, high brightness, low frequency.

High-efficiency optical grade lens: small light loss, good illumination, and ensure uniform light distribution.

Long life: After rigorous life testing, the 90 COB LED Track Light has a service life of tens of thousands of hours, which is more than 100 times that of ordinary incandescent lamps, greatly reducing the user's use and maintenance costs.

High efficiency: The light efficiency is as high as 130LM/W, far exceeding traditional lighting products, which can effectively reduce energy consumption and improve lighting efficiency, which is also in line with the modern green lighting concept.

Structural design: Streamlined design, beautiful appearance, easy installation, and support for movable design, which is convenient for users to adjust the light projection position according to their needs.

Core Configuration

PHILIPS appliances

OSRAM 1207 light source

Dimensions

Technical Parameters

Item No.	ZMS-YZLGD-F5037
Power	25W/30W/35W/40W
Flux	120-130Lm/W
PF	≥0.95
Input Voltage	220V~245V 50-60Hz
Facade color	Black/White
Material	Die-cast aluminum

LED light	OSRAM
Driver	PHILIPS
Color	Fresh color/intelligent dimming and color adjustment/3000K/4000K/5000K
CRI	90
Quality	3 years
Cert.of Driven	CCC CE CB ROHS SAA TUV
Light Angle	24°/ 36°

IES measured indoor lighting photometric data

Light source data		Luminous intensity data Light efficiency: 81.49 lm/W
Model		Peak light intensity (cd)	8673	S/MH(C0/180)	0.48
Nominal power (W)	34.67W	Lamp efficiency (%)	100.0	S/MH (C90/270)	0.56
Rated power supply voltage (V)	230	Total luminous flux (lm)	2825.5	η UP,DN(C0-180)	0.6,42.9
Rated luminous flux(lm)	2825.48	CIE classification	Direct	η UP,DN(C180-360)	0.5,56.0
Number of light sources in the lamp (pcs)	1	Upward luminous flux ratio (8)	1.1	CIBSE SHR NOM	0.50
Measured power supply voltage (V)	230	Downward luminous flux ratio (8)	98.9	CIBSE SHR MAX	0.50
