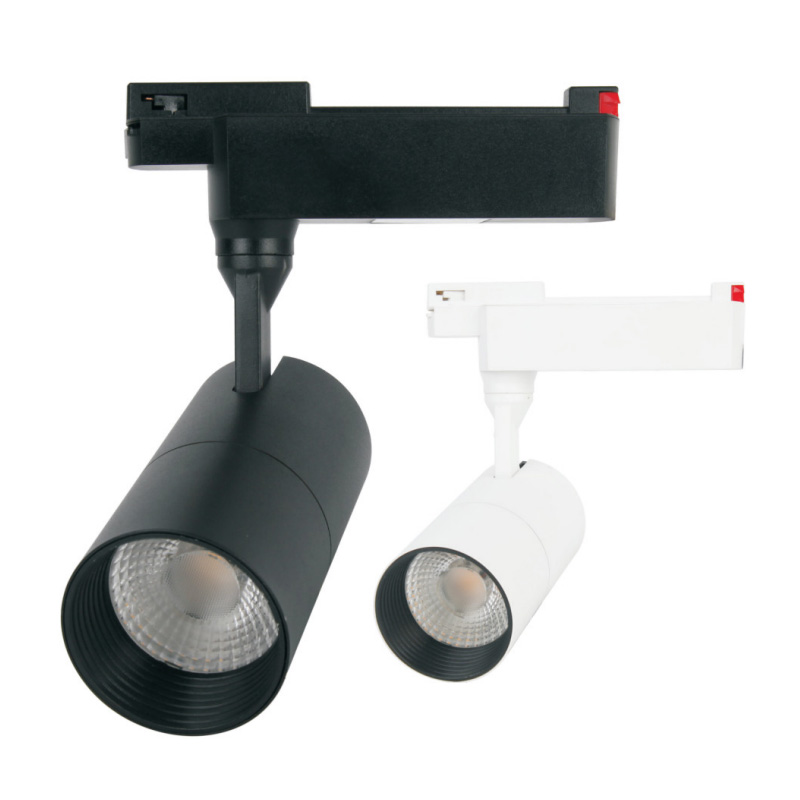

PW Color COB Track Light

The PW color COB track light of Zhenmingshi factory combines the latest technology with excellent performance, high-quality and durable quality and the latest color presentation, becoming a best-selling product on the market. Zhenmingshi PW color COB track light can easily cope with various lighting needs and provide high-quality lighting solutions for space.

Send Inquiry

Product Description

Zhenmingshi PW color COB track lights create a high-quality and comfortable lighting atmosphere, with uniform light output and no glare, ensuring the quality of lighting while protecting the health of human eyes. The PW color COB track lights of the Zhenmingshi brand make the light have excellent color rendering and high color reproduction, which can truly show the color and details of objects and create an elegant visual effect for the space.

Product features:

Long life: less light decay and long life, which is more than 100 times longer than ordinary incandescent lamps.

Heat resistance: The shell is heat-resistant and it is safer to use for a long time than traditional halogen lamps.

Product structure material: The PW Color COB Track Light track part adopts high-quality conductive materials to ensure the stable transmission of current, and at the same time has good wear resistance and corrosion resistance, which can adapt to various complex use environments.

Heat dissipation performance: Equipped with high-quality heat dissipation structure, using high thermal conductivity materials and scientific heat dissipation design, it can quickly and effectively dissipate the heat generated by the lamp when it is working, ensuring the stable operation of the lamp.

Lens design: High-efficiency optical-grade lens, reducing light loss, improving illumination, and ensuring uniform light distribution.

Core Configuration

PHILIPS appliances

OSRAM 1207 light source

Dimensions

Technical Parameters

Item No.	ZMS-YZLGD-F5034
Power	25W/30W/35W
Flux	120-130Lm/W
PF	≥0.95
Input Voltage	220V~245V 50-60Hz
Facade color	Black/White
Material	Aluminum Profile

LED light	OSRAM
Driver	PHILIPS
Color	Fresh color/intelligent dimming and color adjustment/3000K/4000K/5000K
CRI	90
Quality	3 years
Cert.of Driven	CCC CE CB ROHS SAA TUV
Light Angle	12°/ 24°/ 36°/ 45°/ 60°

IES measured indoor lighting photometric data

Light source data		Luminous intensity data Light efficiency: 79.35 lm/W
Model		Peak light intensity (cd)	55798	S/MH(C0/180)	0.57
Nominal power (W)	27.40W	Lamp efficiency (%)	100.0	S/MH (C90/270)	0.56
Rated power supply voltage (V)	220	Total luminous flux (lm)	2174.6	η UP,DN(C0-180)	0.6,47.7
Rated luminous flux(lm)	2174.58	CIE classification	Direct	η UP,DN(C180-360)	0.5,51.2
Number of light sources in the lamp (pcs)	1	Upward luminous flux ratio (8)	1.1	CIBSE SHR NOM	0.50
Measured power supply voltage (V)	220	Downward luminous flux ratio (8)	98.9	CIBSE SHR MAX	0.55
