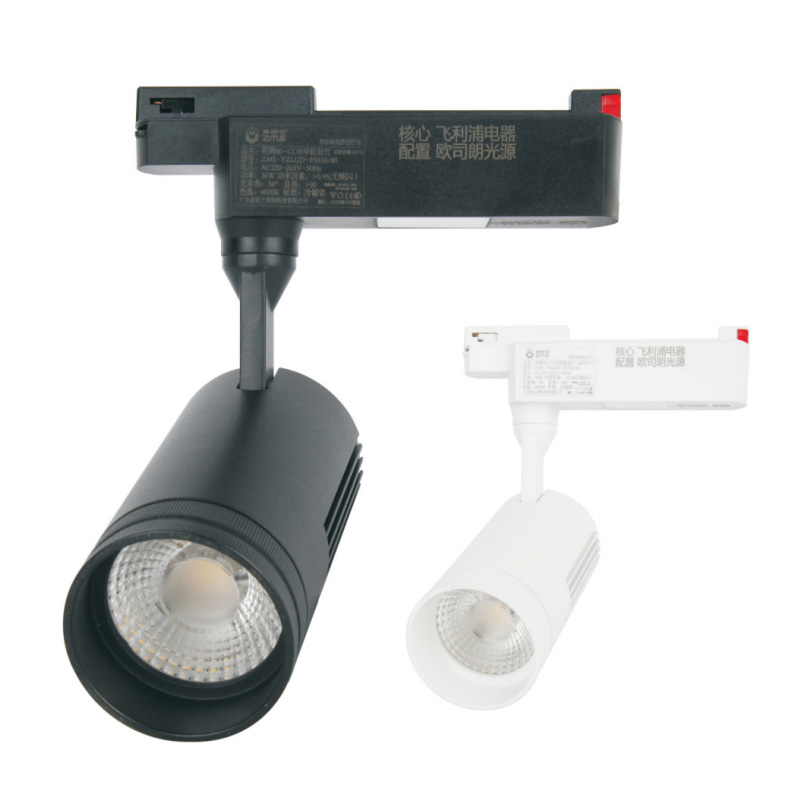

LED COB Track Light

Zhenmingshi manufacturer's LED COB Track Light have the characteristics of ultra-low temperature, high light efficiency, and high illumination. They use advanced COB light source technology to achieve a significant effect of 40% intelligent energy saving. Zhenmingshi COB track lights have the excellent performance of working continuously for 24 hours without temperature rise, providing a stable and comfortable lighting environment for supermarkets.

Send Inquiry

Product Description

Zhenmingshi LED COB Track Light use the latest COB light source, which has high light efficiency and can reach a high brightness level. Whether it is used to display goods or provide indoor basic lighting, it can show high-quality effects. The rail-type design of China Zhenmingshi COB rail lights makes the installation of lamps more flexible and convenient, and the light projection position can be adjusted as needed.

Product features:

Temperature control: The unique heat dissipation design ensures that the surface temperature of the lamp remains extremely low when working continuously for 24 hours, and will not cause any damage to the goods in the supermarket.

Light source technology: Able to provide sufficient lighting for the space. The LED COB Track Light output is uniform, no glare, the visual effect is comfortable, and it can effectively reduce eye fatigue.

Electrical performance: LED COB Track Light Using high-power transformers, the lamps, electrical appliances and light sources are perfectly combined to ensure a stable supply of current and improve the working stability and reliability of the lamps.

Easy to maintain: With modular design, there is no need to disassemble the entire track system when replacing lamps, which greatly reduces maintenance costs and time.

Appearance design: simple and elegant, light and simple, the streamlined appearance is not only beautiful, but also has good aerodynamic properties, which helps in heat dissipation.

Optical design: Equipped with high-efficiency optical-grade lenses, with low light loss and good illumination, it can efficiently gather and project the light emitted by the light source, improve the utilization rate of light, and enhance the lighting effect.

Core Configuration

PHILIPS appliances

OSRAM 1207 light source

Dimensions

Technical Parameters

Item No.	ZMS-YZLGD-F5038/80
Power	25W/30W/35W/40W
Flux	120-130Lm/W
PF	≥0.95
Input Voltage	220V~245V 50-60Hz
Facade color	Black/White
Material	Cold forged aluminum

LED light	OSRAM
Driver	PHILIPS
Color	Fresh color/intelligent dimming and color adjustment/3000K/4000K/5000K
CRI	90
Quality	3 years
Cert.of Driven	CCC CE CB ROHS SAA TUV
Light Angle	12°/24°/ 36°/45°/ 60°

IES measured indoor lighting photometric data

Light source data		Luminous intensity data Light efficiency: 86.66 lm/W
Model		Peak light intensity (cd)	6942	S/MH(C0/180)	0.57
Nominal power (W)	32.07W	Lamp efficiency (%)	100.0	S/MH (C90/270)	0.55
Rated power supply voltage (V)	220	Total luminous flux (lm)	2779.6	η UP,DN(C0-180)	0.6,48.4
Rated luminous flux(lm)	2779.56	CIE classification	Direct	η UP,DN(C180-360)	0.5,50.5
Number of light sources in the lamp (pcs)	1	Upward luminous flux ratio (8)	1.1	CIBSE SHR NOM	0.50
Measured power supply voltage (V)	220	Downward luminous flux ratio (8)	98.9	CIBSE SHR MAX	0.55
