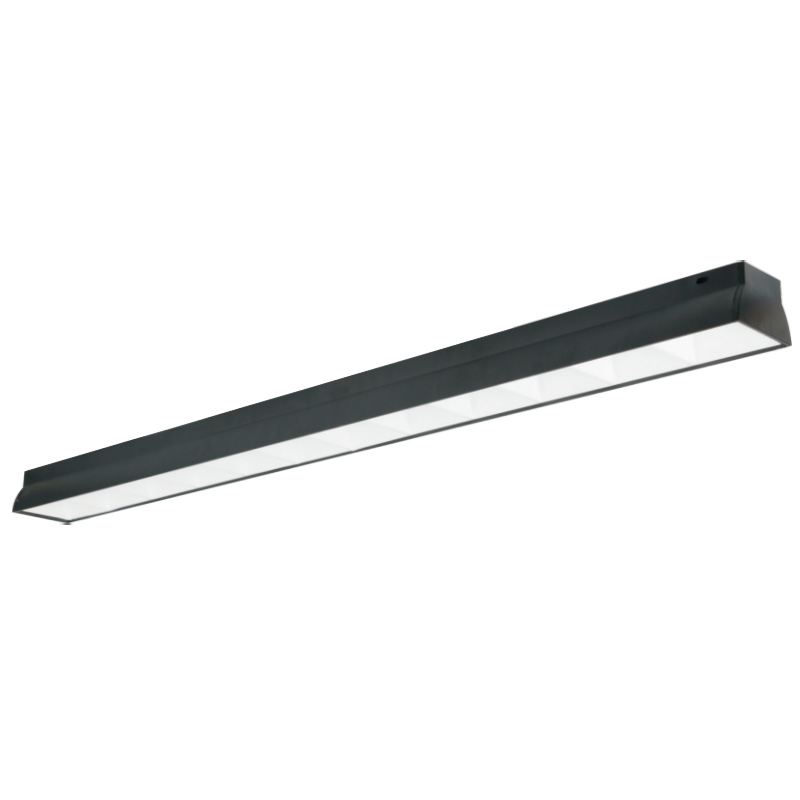

5 Wire Connection Led Linear Light

The 5 Wire Connection Led Linear Light from the Zhenmingshi factory is a lighting product brand that integrates stylish appearance, advanced technology, and high quality. Zhenmingshi's 5-wire LED linear light is highly competitive in the market with its high cost-effectiveness and is relatively popular.

Send Inquiry

Product Description

Zhenmingshi's 5 Wire Connection Led Linear Light has a more flexible and advanced wiring method and a wider range of application scenarios. The appearance design of Zhenmingshi's 5-wire LED linear light is simple and smooth, and the slender lines can be perfectly integrated into various decoration styles with fashionable and elegant characteristics.

Product features:

5-wire connection technology: Zhenmingshi 5 Wire Connection Led Linear Light This unique 5-wire connection method ensures the stable transmission of current, making the brightness and color of the light more uniform, and also improves the service life of the lamp

Reflective material: The reflector uses imported anodized aluminum plate to ensure high output of light energy

Color effect: Through color matching, static display of 16 million colors can be achieved, as well as various dynamic effects such as flickering, cross-color change, chasing changes, and flow functions.

Strong anti-interference: The 5 Wire Connection Led Linear Light has good anti-electromagnetic interference performance, and can work stably in complex electromagnetic environments. It will not be interfered by other electronic equipment, ensuring the normal use of the light.

High efficiency and energy saving: The 5 Wire Connection Led Linear Light adopts advanced LED chip technology, has high energy conversion efficiency, can provide bright lighting effects at low energy consumption, and has significant energy saving effect compared with traditional lamps, reducing the user's electricity cost.

Flexibility: LED linear lights can be installed individually or in combination, suitable for various installation environments and needs

Technical Parameters

Item No.	ZMS-SFX8878-96D
Power	35W/40W/45W/50W
Flux	120-130Lm/W
PF	≥0.95
InputVoltage	220V~265V 50-60Hz
Facade color	White/Black
Material	Aluminum Profile
LED light	American Purui
Driver	Igor Power
Color	Fresh color/intelligent dimming and color adjustment/3000K/4000K/5000K
CRI	80
Quality	3 years
Cert.of Driven	CCC CE CB ROHS SAA TUV
Light Angle	90°

Core Configuration

Igor Power

Intelligent energy saving 40% supermarket lighting system

Dimensions

IES measured indoor lighting photometric data

Light source data		Luminous intensity data Light efficiency: 109.95 lm/W
Model		Peak light intensity (cd)	2308	S/MH(C0/180)	1.31
Nominal power (W)	47.45W	Lamp efficiency (%)	100.0	S/MH (C90/270)	1.24
Rated power supply voltage (V)	220	Total luminous flux (lm)	5217.7	η UP,DN(C0-180)	0.5,47.7
Rated luminous flux(lm)	5217.7	CIE classification	Direct	η UP,DN(C180-360)	0.5,51.3
Number of light sources in the lamp (pcs)	1	Upward luminous flux ratio (8)	0.9	CIBSE SHR NOM	1.25
Measured power supply voltage (V)	220	Downward luminous flux ratio (8)	99.1	CIBSE SHR MAX	1.35
