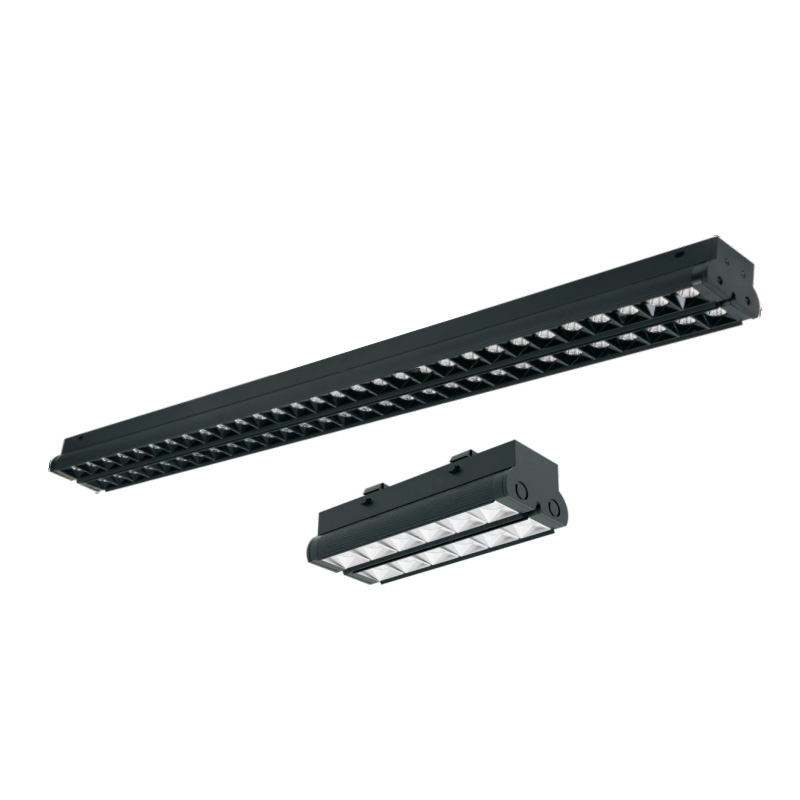

Quick Connect LED Linear Lights

The Quick Connect LED Linear Lights from Zhenmingshi is easy to install, has excellent light effect and good quality. The quick-connect LED linear light from Zhenmingshi has a stylish and simple design, which can be integrated with various decoration styles to provide high-quality lighting effects for the space.

Send Inquiry

Product Description

The Zhenmingshi Quick Connect LED Linear Lights adopts the latest connection design, which can realize the quick connection of the lamp without complicated tools and cumbersome operations. The Zhenmingshi quick-connect LED linear light adopts high-quality LED chips and advanced optical lenses, which can achieve efficient light output and uniform light distribution.

Product Features:

Green and environmentally friendly: Zhenmingshi Quick Connect LED Linear Lights do not contain harmful elements such as mercury and lead, which is conducive to recycling and utilization

No radiation, no flicker: The light is soft and flicker-free, creating a comfortable lighting environment

Quick connection technology: The connection parts of the Zhenmingshi quick-connect LED linear light are carefully designed to ensure the firmness and stability of the connection, while facilitating users to flexibly layout and adjust according to actual needs

Long-life design: High-quality materials and components are selected to ensure the long service life of the lamp

Stable performance, safe and reliable: The Zhenmingshi Quick Connect LED Linear Lights is scientifically and rationally designed, and has been rigorously tested to ensure stable performance in various usage environments

Technical Parameters

Item No.	ZMS-SP88176
Power	2* 25W/230W/236W
Flux	120-130Lm/W
PF	≥0.95
InputVoltage	220V~265V 50-60Hz
Facade color	White/Black
Material	Aluminum Profile
LED light	American Purui
Driver	Igor Power
Color	Fresh color/intelligent dimming and color adjustment/3000K/4000K/5000K
CRI	90
Quality	3 years
Cert.of Driven	CCC CE CB ROHS SAA TUV
Light Angle	24°

Core Configuration

Igor Power

Intelligent energy saving 40% supermarket lighting system

Dimensions

IES measured indoor lighting photometric data

Light source data		Luminous intensity data Light efficiency: 89.65 lm/W
Model		Peak light intensity (cd)	28426	S/MH(C0/180)	0.41
Nominal power (W)	65.93W	Lamp efficiency (%)	100.0	S/MH (C90/270)	0.44
Rated power supply voltage (V)	220	Total luminous flux (lm)	5910.7	η UP,DN(C0-180)	0.6,43.9
Rated luminous flux(lm)	5910.68	CIE classification	Direct	η UP,DN(C180-360)	0.5,55.1
Number of light sources in the lamp (pcs)	1	Upward luminous flux ratio (8)	1.1	CIBSE SHR NOM	0.00
Measured power supply voltage (V)	220	Downward luminous flux ratio (8)	98.9	CIBSE SHR MAX	1.00
