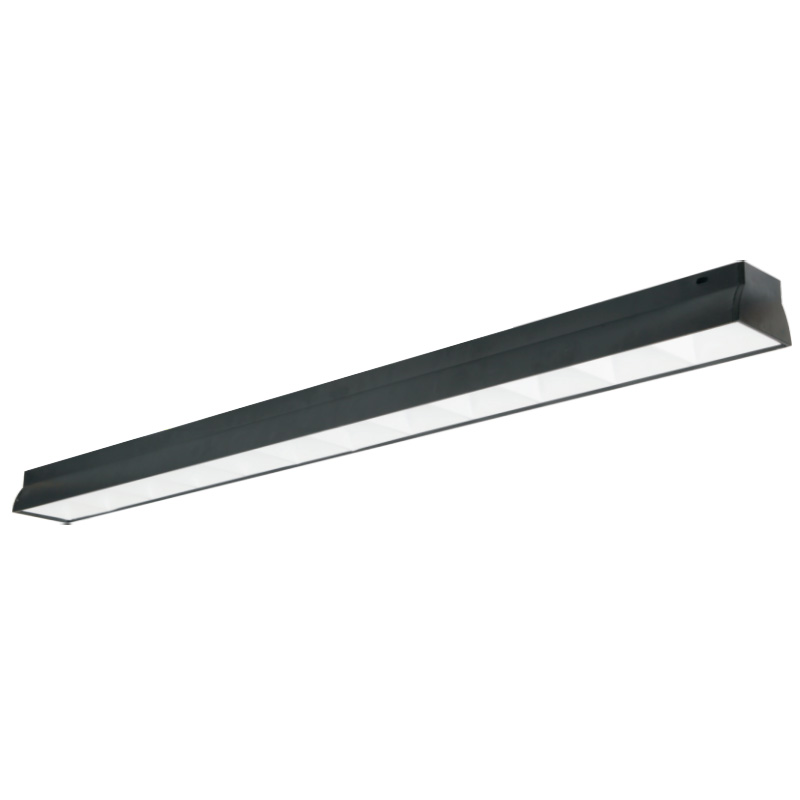

Led Linear Lighting Office Lighting

Zhenmingshi's Led Linear Lighting Office Lighting bring a comfortable and elegant lighting experience with their unique linear shape and high-quality lighting effects. Zhenmingshi's OEM seamless LED linear lights also offer certain discounts for customers who purchase in bulk.

Send Inquiry

Product Description

Zhenmingshi Led Linear Lighting Office Lighting not only have the characteristics of high brightness and durability, but also can effectively reduce glare and protect vision health. Zhenmingshi OEM seamless LED linear lights have advanced installation methods and diversified design styles to meet the needs of different spaces, and have advantages in easy maintenance and inventory management, and can provide customers with cost-effective lighting solutions.

Product features:

Seamless connection process: Adopt unique connection technology to ensure that the connection between lamps is tight and seamless

High protection level: Zhenmingshi Led Linear Lighting Office Lighting have good waterproof, dustproof and corrosion resistance, and the protection level reaches IP65 and above

Simple structural design: The structural design of the lamp is simple and easy to disassemble and install. When maintenance or replacement of parts is required, no complicated tools and operations are required, which is convenient and fast.

High efficiency and energy saving: low power consumption, long service life, the nominal life of the luminous flux attenuation to 50% can reach 60,000 to 100,000 hours, which is more than 10 times longer than the life of traditional light sources

Waterproof and corrosion resistant: The shell of Zhenmingshi OEM seamless LED linear lights is made of aluminum alloy, with clear lines, simple structure, beautiful appearance, firmness and corrosion resistance. The surface is electrostatically sprayed with plastic, and has good high temperature and weather resistance.

Seamless connection technology: The Led Linear Lighting Office Lighting adopts advanced seamless connection technology to ensure that there are no obvious seams during installation and use of the lamp, and the overall appearance is beautiful and fashionable

Product specifications:

Voltage: According to customer needs, 12V, 24V and other voltage options are provided.

Protection level: Led Linear Lighting Office Lighting has a built-in waterproof design, and the protection level can reach IP65, which is suitable for use in various indoor and outdoor environments.

Specifications: Voltage: DC24V (other voltages can be customized according to needs)

Technical Parameters

Item No.	ZMS-SFX8878-96D
Power	35W/40W/45W/50W
Flux	120-130Lm/W
PF	≥0.95
InputVoltage	220V~265V 50-60Hz
Facade color	White/Black
Material	Aluminum Profile
LED light	American Purui
Driver	Igor Power
Color	Fresh color/intelligent dimming and color adjustment/3000K/4000K/5000K
CRI	80
Quality	3 years
Cert.of Driven	CCC CE CB ROHS SAA TUV
Light Angle	90°

Core Configuration

Igor Power

Intelligent energy saving 40% supermarket lighting system

Dimensions

IES measured indoor lighting photometric data

Light source data		Luminous intensity data Light efficiency: 109.95 lm/W
Model		Peak light intensity (cd)	2308	S/MH(C0/180)	1.31
Nominal power (W)	47.45W	Lamp efficiency (%)	100.0	S/MH (C90/270)	1.24
Rated power supply voltage (V)	220	Total luminous flux (lm)	5217.7	η UP,DN(C0-180)	0.5,47.7
Rated luminous flux(lm)	5217.7	CIE classification	Direct	η UP,DN(C180-360)	0.5,51.3
Number of light sources in the lamp (pcs)	1	Upward luminous flux ratio (8)	0.9	CIBSE SHR NOM	1.25
Measured power supply voltage (V)	220	Downward luminous flux ratio (8)	99.1	CIBSE SHR MAX	1.35
