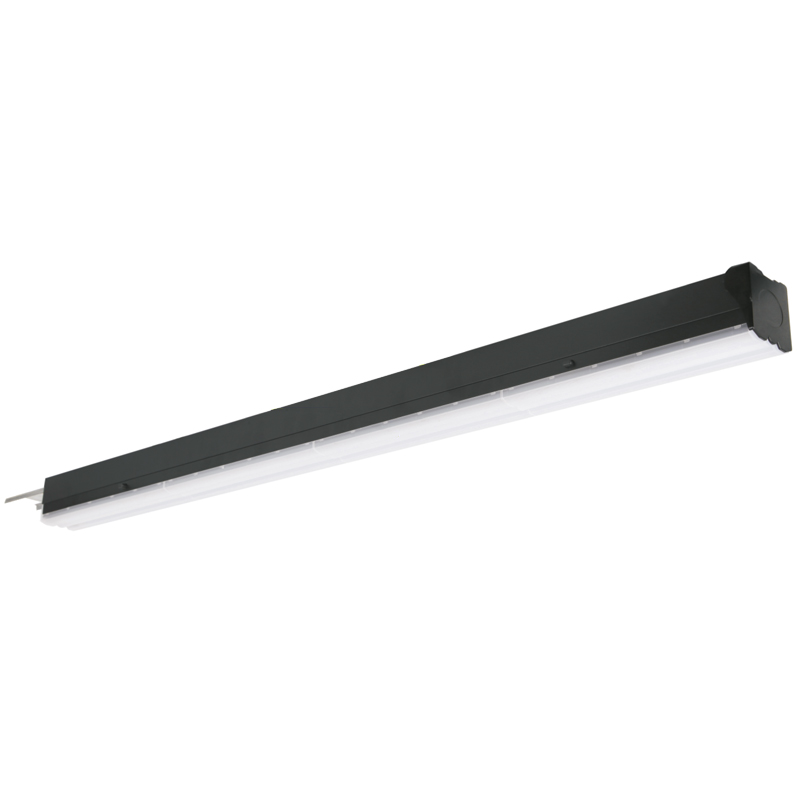

Simple Installation LED Linear Light

Zhenmingshi's simple installation LED linear lights have a certain brand awareness and good reputation. Zhenmingshi's simple installation LED linear lights can be customized according to the needs of different scenes, providing the latest lighting effects and visual experience for the space.

Send Inquiry

Product Description

Zhenmingshi's simple installation LED linear lights have the characteristics of high efficiency and energy saving, flexible installation, and durability. Zhenmingshi's simple installation LED linear lights not only have high-quality properties such as low power consumption, long life, and high brightness, but are also easy to install and maintain.

Product features:

Product use: Mainly used for indoor lighting, can also be used in indoor and outdoor entertainment venues, building outlines and billboard production, etc.

High brightness: bright light, excellent lighting effect.

Easy to bend: The Simple Installation LED Linear Light has good flexibility and can be bent freely according to the installation environment to meet various installation requirements.

Lamp bead quality: High-quality Simple Installation LED Linear Light use high-quality lamp beads, which have the characteristics of high brightness, low light decay and high color reproduction.

Shell material: aluminum alloy, clear lines, simple structure, beautiful appearance, sturdy, corrosion-resistant

Light irradiation distance: 20 meters

Technical Parameters

Item No.	ZMS-XTD-AS881428
Power	25W/38W/44W
Flux	130-140Lm/W
PF	≥0.95
InputVoltage	220V~240V 50-60Hz
Facade color	White/Black
Material	Aluminum Profile
LED light	American Purui
Driver	Igor Power
Color	Fresh color/intelligent dimming and color adjustment/3000K/4000K/5000K
CRI	80
Quality	3 years
Cert.of Driven	CCC CE CB ROHS SAA TUV
Light Angle	90°

Core Configuration

Igor Power

Intelligent energy saving 40% supermarket lighting system

Dimensions

IES measured indoor lighting photometric data

CIE Classification: Direct Type	Maximum Light Intensity Angle: C:270.0 G:1.0
Luminous flux of lamp: 6219.14 Im	Half-peak angle (50%Imax):99.18,102.02
Luminous efficiency: 132.519 Im/W	Lamp efficiency: 100.00%
Central light intensity: 2428.748cd	Upward luminous flux ratio: 0.0%
Maximum light intensity: 2470.032cd	Downward light flux ratio: 100.0%
Beam width (10%Imax): 152.02, 151.58
