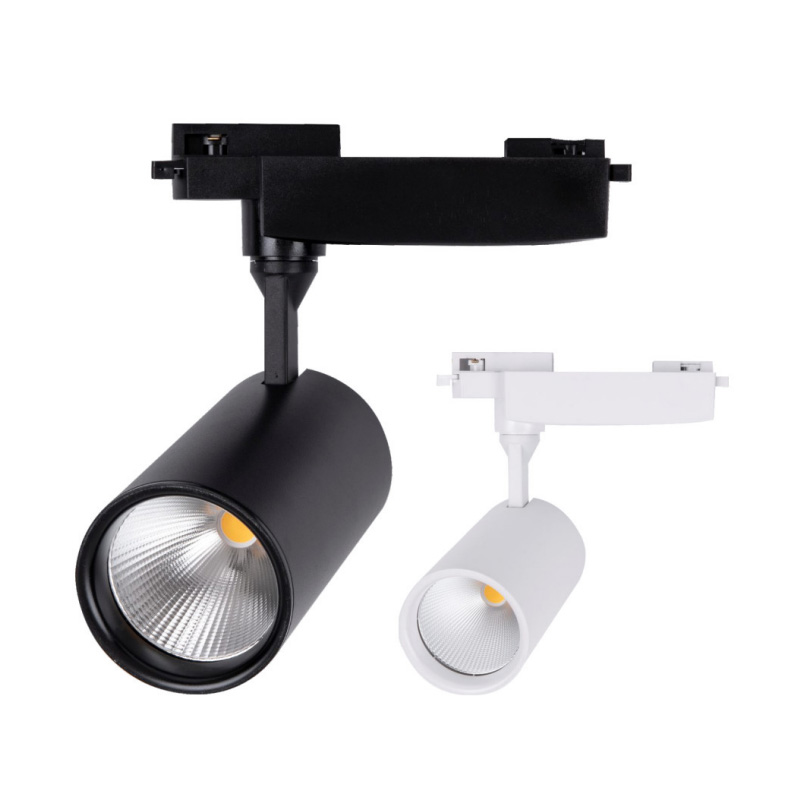

30W COB Track Light

The Zhenmingshi 30W COB track light uses high-quality COB (Chip On Board) light sources with a light efficiency of up to 110lm/w, uniform light output and no glare, making it an ideal choice for commercial and home lighting. China Zhenmingshi 30W COB track light uses COB chips as the most advanced lighting chip technology currently, integrating multiple LED chips on a substrate, making the light source more efficient and the light color more uniform.

Send Inquiry

Product Description

The Zhenmingshi 30W COB Track Light has a high-quality aluminum shell, good heat dissipation performance, low light decay, and long life. At the same time, the brand LED cold light source has no radiation, no heavy metal pollution, and pure and rich colors. Even after years of use, the brightness of the Zhenmingshi 30W COB Track Light will not decrease significantly, ensuring the fashion and durability of the product.

Main features:

Efficient energy-saving performance: The 30W COB Track Light power design can effectively reduce energy consumption while providing sufficient brightness, which meets the requirements of modern society for energy conservation and environmental protection.

High-power transformer: The high-power transformer perfectly combines lamps, electrical appliances, and light sources to provide stable and reliable lighting effects.

Lightweight and beautiful: Streamlined design, beautiful appearance, light and simple, easy to install and replace

Stable power drive: 30W COB Track Light Adopting high-quality power drive, it has multiple safety protection functions such as overvoltage protection, overcurrent protection, short circuit protection, etc., to ensure the stable operation of the lamp

Anti-glare design: Adopting special anti-glare technology, it effectively reduces the stimulation of glare to the human eye and improves the comfort of lighting.

Convenient track installation method: supports standard track installation, the installation process is simple and quick, the track has strong compatibility and can match with track systems of various brands, which is convenient for users to use and replace.

Core Configuration

Listed company (Igor brand) power supply

Puri chip special customized fresh color

Dimensions

Technical Parameters

Item No.	ZMS-YZLGD-F5038/88
Power	30W/36W
Flux	120-130Lm/W
PF	≥0.95
Input Voltage	220V~245V 50-60Hz
Facade color	Black/White
Material	Cold forged aluminum

LED light	American Bridgechip
Driver	Igor Power
Color	Fresh color/intelligent dimming and color adjustment/3000K/4000K/5000K
CRI	90
Quality	5 years
Cert.of Driven	CCC CE CB ROHS SAA TUV
Light Angle	24°/ 36°

IES measured indoor lighting photometric data

Voltage (V):219.40 V	Maximum light intensity: 13165.35 cd
Current (A):0.1420 A	Maximum light intensity angle:C=180 Gamma=0
Power (W): 30.40 W	Upward luminous flux ratio: 0.00%
Power factor: 0.9690	Lamp efficiency: 100.00%
Light source luminous flux: 3181.73	Central light intensity: 13165.35 cd
Effective luminous flux: 2912.97 lm	Luminous flux ERP (φuse) 120 degrees: 3179.44 lm
