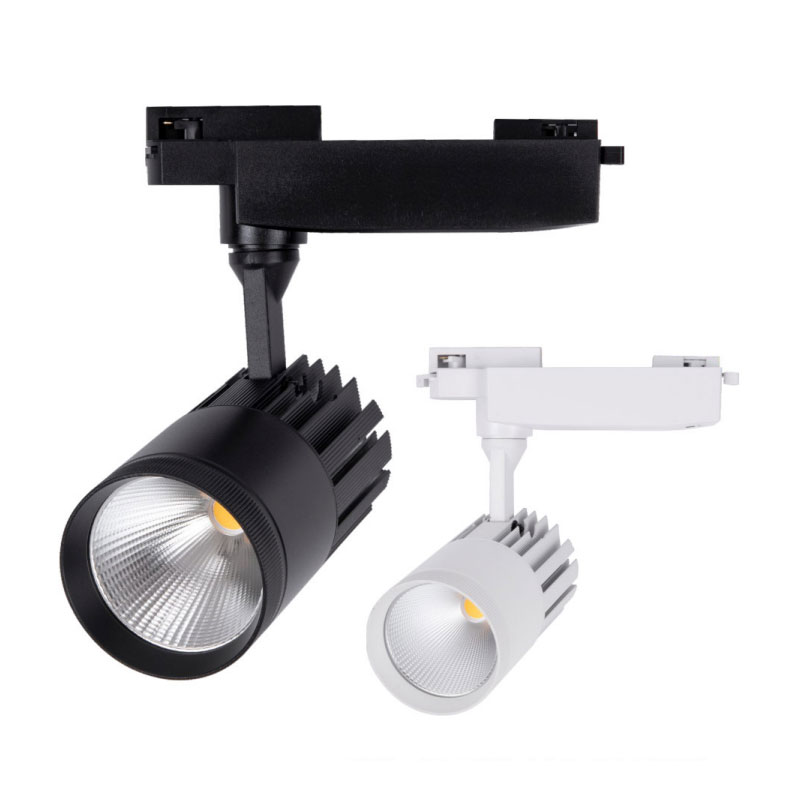

LED Track Lighting

The appearance design of the Zhenmingshi LED Track Lighting focuses on the combination of simplicity and fashion, with smooth lines and elegant shapes. The Zhenmingshi LED track light has the advantages of pure color and low flicker, helping to create an advanced and bright space atmosphere.

Send Inquiry

Product Description

LED Track Lighting under the Zhenmingshi brand have a high degree of flexibility and adjustability. The LED light source has high luminous efficiency and low power consumption. Compared with traditional tungsten halogen lamps and metal halide lamps, LED track lights consume less power. It is only 40%-60% of ordinary metal halide track lights, and the energy saving effect is significant. China Zhenmingshi LED track light factory provides a variety of the latest styles of LED track lights, and customers can choose according to their preferences and the characteristics of the place.

Performance features:

Energy saving and high efficiency: The low energy consumption characteristics of LED light sources make LED track lights excellent in energy saving.

Flexible: The LED Track Lighting lamps can move freely on the track, and are very convenient to install and adjust, meeting the lighting needs of different scenes.

Shell material: usually made of high-pressure die-cast aluminum, which is lightweight, simple, beautiful, and has excellent heat dissipation performance.

Long lifespan: The lifespan of Zhenmingshi LED Track Lighting can reach at least 30,000 hours, or even up to 50,000 hours, far exceeding traditional lighting products.

Waterproof level: IP65 waterproof level, suitable for use outdoors or in humid environments.

Core Configuration

Listed company (Igor brand) power supply

Puri chip special customized fresh color

Dimensions

Technical Parameters

Item No.	ZMS-YZLGD-F5036/85
Power	24W/30W/36W
Flux	120-130Lm/W
PF	≥0.95
Input Voltage	220V~265V 50-60Hz
Facade color	Black/White
Material	Cold Forged Aluminum

LED light	American Bridgechip
Driver	Igor Power
Color	Fresh color/intelligent dimming and color adjustment/3000K/4000K/5000K
CRI	90
Quality	5 years
Cert.of Driven	CCC CE CB ROHS SAA TUV
Light Angle	24°/36°

IES measured indoor lighting photometric data

Voltage (V): 219.60 V	Maximum light intensity: 13709.12 cd
Current (A): 0.1440 A	Maximum light intensity angle: C=0 Gamma=1
Power (W): 30.48 W	Upward luminous flux ratio: 0.00%
Power factor: 0.9630	Lamp efficiency: 100.00%
Light source luminous flux: 3350.90	Central light intensity: 13639.27 cd
Effective luminous flux: 2990.57 lm	Luminous flux ERP (φuse) 120 degrees: 3340.66 lm
