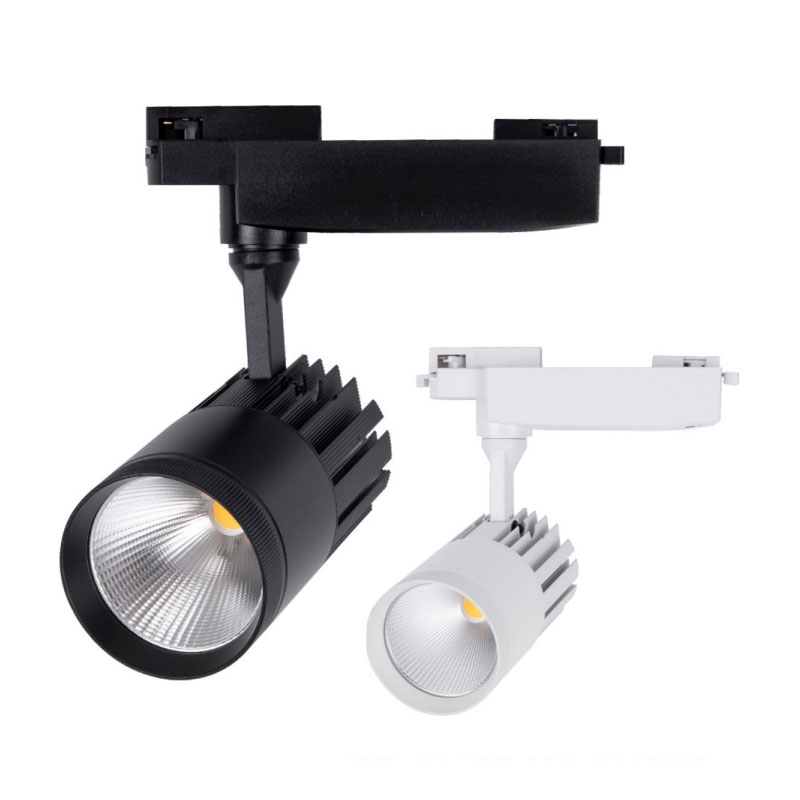

COB Track Lighting

Zhenmingshi factory offers discount wholesale discounts on COB Track Lighting, which meet the lighting needs of various places with good quality and fashionable design. Zhenmingshi COB track lights use advanced COB light source technology to achieve a higher brightness level, and the light is even and glare-free.

Send Inquiry

Product Description

Zhenmingshi manufacturer's COB Track Lighting have outstanding features such as high efficiency, high brightness, energy saving and environmental protection, and are very popular in the market. China Zhenmingshi COB track lights use high-quality aluminum as the shell material, which has good heat dissipation performance and can quickly dissipate the heat generated when the lamp is working, effectively reducing light decay and extending the service life of the lamp.

Features:

Optical design: Equipped with high-efficiency optical grade lenses, with low light loss and good illumination to ensure the best lighting effect.

Dust-proof and insect-proof: COB Track Lighting has dust-proof and insect-proof functions to protect the internal components of the lamp from damage.

Strong structure: The structure of the COB Track Lighting lamp is reasonably designed, sturdy and durable, and the connection between the lamp holder and the track is tight and reliable, ensuring that the lamp runs stably on the track and is not easy to loosen or fall off.

Light source technology: Adopt the latest light source technology - COB light source, with high light efficiency, which can reach 110lm/w, uniform light output and no glare

Light source quality: no radiation, no heavy metal pollution, pure and rich colors, high brightness, low frequency.

Core Configuration

Listed company (Igor brand) power supply

Puri chip special customized fresh color

Dimensions

Technical Parameters

Item No.	ZMS-YZLGD-F5036/85
Power	24W/30W/36W
Flux	120-130Lm/W
PF	≥0.95
Input Voltage	220V~265V 50-60Hz
Facade color	Black/White
Material	Cold Forged Aluminum

LED light	American Bridgechip
Driver	Igor Power
Color	Fresh color/intelligent dimming and color adjustment/3000K/4000K/5000K
CRI	90
Quality	5 years
Cert.of Driven	CCC CE CB ROHS SAA TUV
Light Angle	24°/36°

IES measured indoor lighting photometric data

Voltage (V): 219.60 V	Maximum light intensity: 13709.12 cd
Current (A): 0.1440 A	Maximum light intensity angle: C=0 Gamma=1
Power (W): 30.48 W	Upward luminous flux ratio: 0.00%
Power factor: 0.9630	Lamp efficiency: 100.00%
Light source luminous flux: 3350.90	Central light intensity: 13639.27 cd
Effective luminous flux: 2990.57 lm	Luminous flux ERP (φuse) 120 degrees: 3340.66 lm
