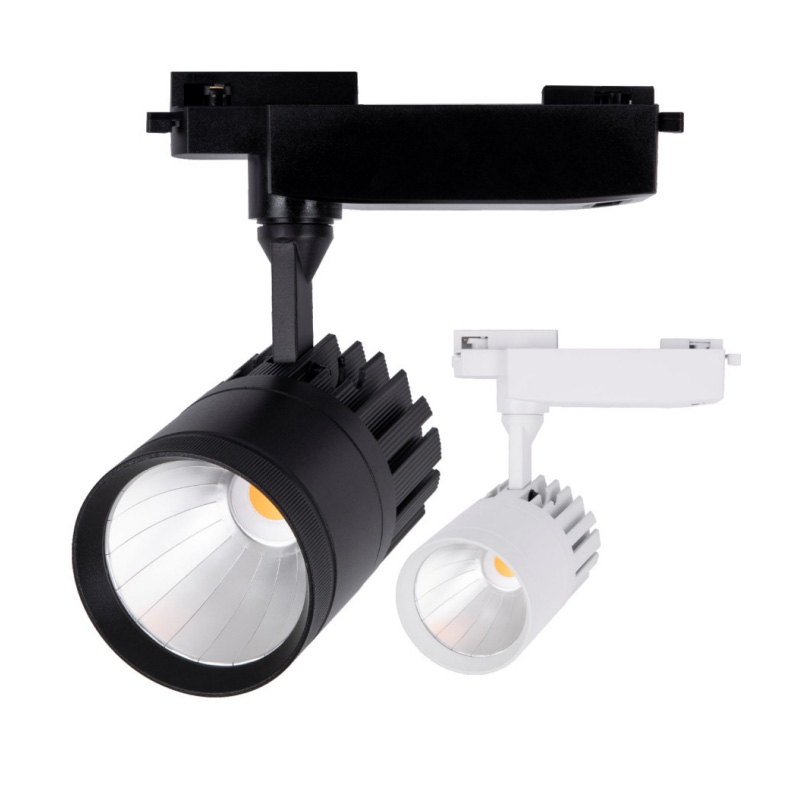

36W COB Track Light

China Zhenmingshi 36W COB track light adopts advanced COB light source technology, which is designed for high-end commercial and home lighting. Zhenmingshi manufacturer 36W COB track light uses the latest cold forged heat sink technology, which generates almost no heat during operation, effectively avoiding the problem of water evaporation and food aging of fresh products.

Send Inquiry

Product Description

The Zhenmingshi 36W COB Track Light is equipped with a high-precision optical lens, which can accurately control and focus the light, making the lighting angle more accurate, avoiding light waste, and improving the lighting effect and quality. China Zhenmingshi 36W COB Track Light uses the latest COB packaging technology to integrate multiple LED chips on a substrate, making the light source more concentrated, the luminous efficiency higher, and providing brighter and more uniform lighting effects.

Product Features:

Widely used: The power is 36 watts, which can provide sufficient brightness to meet the lighting needs of large commercial places, exhibition halls, home living rooms and other spaces.

Rich luminous colors: Including warm white, natural white, cold white and other color temperatures to choose from, can be selected according to different scenes and atmosphere requirements, creating a comfortable, warm or bright lighting environment.

Color rendering index: high color rendering index, generally color rendering index Ra ≥ 80, can truly restore the color of the object, making the color of the illuminated object more vivid and realistic.

Energy-saving and high efficiency: Compared with traditional lighting fixtures, the energy consumption of the Zhenmingshi 36W COB track light is greatly reduced while maintaining the same light intensity. The intelligent energy saving can reach more than 40%, which greatly reduces the operating cost.

Flexible installation: The COB track light has a sophisticated structure design and can be directly embedded in the track. It also has a lateral movement function, which allows users to adjust the light projection position according to actual needs.

Core Configuration

Listed company (Igor brand) power supply

Puri chip special customized fresh color

Dimensions

Technical Parameters

Item No.	ZMS-YZLGD-F5036/95
Power	24W/30W/35W/36W/40W
Flux	120-130Lm/W
PF	≥0.95
Input Voltage	220V~245V 50-60Hz
Facade color	Black/White
Material	Cold forged aluminum

LED light	American Bridgechip
Driver	Igor Power
Color	Fresh color/intelligent dimming and color adjustment/3000K/4000K/5000K
CRI	90
Quality	5 years
Cert.of Driven	CCC CE CB ROHS SAA TUV
Light Angle	36°

IES measured indoor lighting photometric data

Light source data		Luminous intensity data Light efficiency: 132.79 lm/W
Model		Peak light intensity (cd)	7118	S/MH(C0/180)	0.64
Nominal power (W)	24.28W	Lamp efficiency (%)	100.0	S/MH (C90/270)	0.57
Rated power supply voltage (V)		Total luminous flux (lm)	3224.6	η UP,DN(C0-180)	0.0,55.0
Rated luminous flux(lm)	3224.58	CIE classification	Direct	η UP,DN(C180-360)	0.0,45.0
Number of light sources in the lamp (pcs)	1	Upward luminous flux ratio (8)	0.0	CIBSE SHR NOM	0.50
Measured power supply voltage (V)		Downward luminous flux ratio (8)	100.0	CIBSE SHR MAX	0.65
