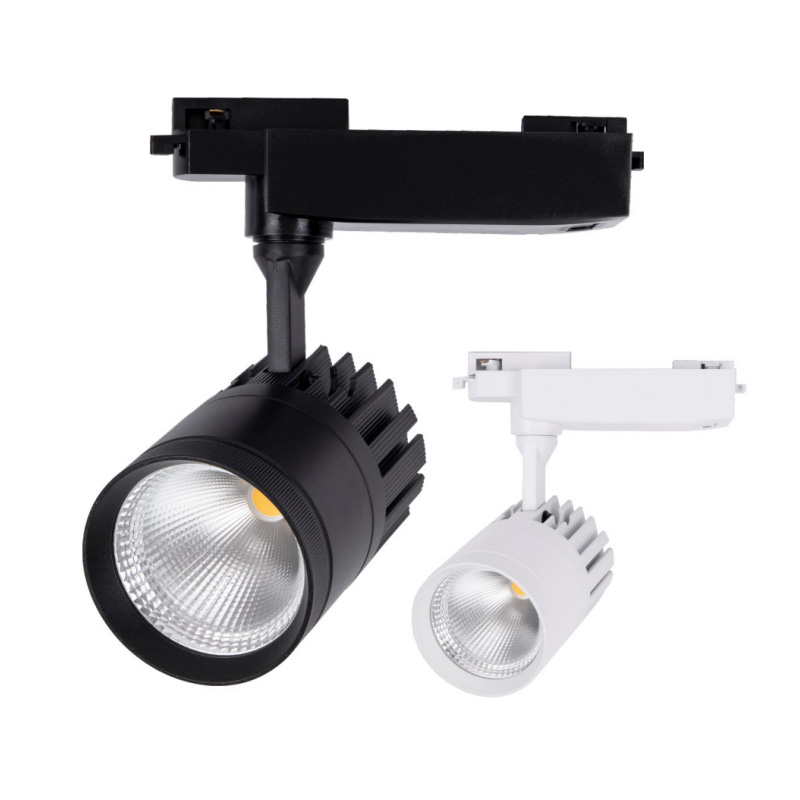

44W COB Track Light

The Zhenmingshi 44W COB track light has high color rendering and excellent quality control. It is a lighting product that combines advanced light source technology and high-efficiency design. The aluminum alloy material of the Zhenmingshi 44W COB track light can not only quickly conduct the heat generated by the lamp beads to extend the service life of the lamp, but also effectively resist external collision and extrusion to prevent the lamp from being damaged in daily use.

Send Inquiry

Product Description

The Zhenmingshi 44W COB track light is equipped with an optical lens or lampshade with high light transmittance, which has good UV resistance and aging resistance, ensuring that the lamp will not turn yellow or become brittle during long-term use, and its durability is greatly improved. The COB chip of the Zhenmingshi 44W COB track light adopts high-quality semiconductor materials. Under normal use conditions, the light decays slowly and can maintain long-term stable lighting, which greatly reduces the frequency and cost of replacing lamps. It is one of the latest best-selling products of Zhenmingshi.

Product features:

Flexible application: 44W COB Track Light has intelligent dimming function, which can realize the brightness adjustment and color change of lights through remote control, intelligent control system and other methods according to different scenes and needs, meeting diverse lighting needs.

Light source quality: Using advanced COB packaging technology, multiple LED chips are integrated on a substrate, making the light source more concentrated, brighter and more uniform. Compared with traditional LED lamp beads, COB track lights have higher luminous efficiency, which can effectively save energy and reduce energy consumption.

Heat dissipation configuration: 44W COB Track Light has a good heat dissipation system. By optimizing the design of the lamp body structure and heat dissipation fins, the heat dissipation efficiency is improved to ensure that the lamp will not affect its service life due to overheating when working for a long time. At the same time, the heat dissipation system can also reduce the operating temperature of the lamp and improve the safety and stability of the lamp.

Track design: Compatible with standard track system, easy and quick installation.

Lighting angle: Usually 15°, which can be adjusted according to specific needs to adapt to different lighting scenarios.

Core Configuration

Listed company (Philips brand) power supply

Puri chip special customized fresh color

Dimensions

Technical Parameters

Item No.	ZMS-YZLGD-F5036/105
Power	24W/30W/36W/44W/60W
Flux	130-140Lm/W
PF	≥0.95
Input Voltage	220V~245V 50-60Hz
Facade color	Black/White
Material	Cold forged aluminum

LED light	American Bridgechip
Driver	Philips Power Supply
Color	Fresh color/intelligent dimming and color adjustment/3000K/4000K/5000K
CRI	90
Quality	8 years
Cert.of Driven	CCC CE CB ROHS SAA TUV
Light Angle	24°/36°

IES measured indoor lighting photometric data

Light source data		Luminous intensity data Light efficiency: 130.84 lm/W
Model		Peak light intensity (cd)	6852	S/MH(C0/180)	0.63
Nominal power (W)	23.16W	Lamp efficiency (%)	100.0	S/MH (C90/270)	0.65
Rated power supply voltage (V)	220	Total luminous flux (lm)	3030.1	η UP,DN(C0-180)	0.6,46.7
Rated luminous flux(lm)	3030.07	CIE classification	Direct	η UP,DN(C180-360)	0.5,52.2
Number of light sources in the lamp (pcs)	1	Upward luminous flux ratio (8)	1.1	CIBSE SHR NOM	0.50
Measured power supply voltage (V)	220	Downward luminous flux ratio (8)	98.9	CIBSE SHR MAX	0.65
